Specifications

Here are the specifications of the packing plywood from HG Plywood factory:

Size: 1220*2440 mm (4*8 ft)
Thickness: 2mm up to 25mm
Thickness tolerances: ± 0.5mm
Grade: A/A, A/B, B/B, B/C A grade: Bintangor B grade: Styrax
Core: Mixed hardwood (rubber, acacia, eucalyptus)
Glue: MR, E2 Humidity: 12-18%
Density: ≥ 650kg/m3
Hot press: One time
Usage: To package a variety of products, including pallets, crates, seat cushions, lofts, shelves, etc., but it is especially popular for packaging valuable items, fresh fruit, and fragile goods
Standard: Export packaging

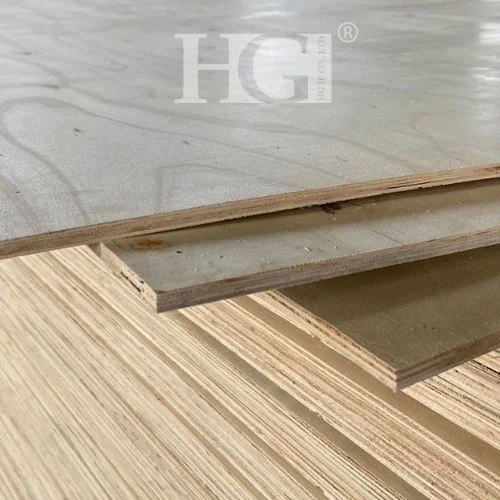

hg plywood packing plywood

Product image

Below are some images of packaging plywood from HG Plywood. If possible, we invite you to visit our factory directly for a better assessment and experience.

packing plywood vietnam

B/C Grade

vietnam packing plywood ab grade

A/B Grade

vietnam packing plywood A grade

A Grade

packaging plywood

Packaging

vietnam cheap plywood

Packaging awaiting shipment for customers

vietnam ply side

Plywood side

The production process

To manufacture durable plywood sheets for packaging, it's crucial to use high-quality materials, advanced technology, and adhere to strict manufacturing processes.

Here's the manufacturing process at HG Plywood factory:

1. Timber Peeling:

The wood is stripped of bark and cut into pieces of required lengths. For plywood sized 4x8ft (1220mmx2440mm), the wood is cut to 1270mm lengths. Then, it's processed through a veneer peeling machine to create veneer layers with thicknesses ranging from 1.5mm to 2mm.

2. Material Drying:

Before further processing, the raw timber is dried.

3. Veneer Arrangement and Gluing:

Veneer layers are carefully glued and stacked perpendicular to each other to enhance structural integrity. Depending on the desired thickness of the plywood sheet, craftsmen arrange the veneer layers meticulously.

4. Heat Pressing:

Once glued and stacked, the plywood sheets undergo heat pressing using a hydraulic machine.

5. Cutting

The sheets are cut to standard dimensions or customized to meet customer requirements.

6. Quality Inspection and Packaging:

Plywood sheets meeting strict quality standards undergo thorough packaging before being shipped to customers.

Applications of packing plywood

  • Packaging goods and containers.
  • Creating pallet boards.
  • Cushioning chair pads.
  • Installation and making hanging shelves.
  • Additionally, plywood packing can also be utilized in various other products in the furniture or construction sectors.
